HHBB20A

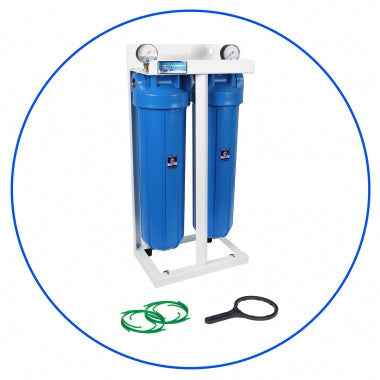

Overview:Aquafilter offers HHBB20A 2-Stage Whole House Big Blue® filtration System suitable for POE (Point of use) installations. HHBB20A housings are compatible with a broad range of cartridge types available on the market. Additionally, pressure drop can be monitored through the two pressure gauges located in the inlet and outlet positions of the system besides the microbial protection conferred by blue colored-housings in sunny locations. Equipped with pressure relief valves and a rounded bottom which increases stress resistance, HHBB20A ensures a continuous supply of fresh and clean drinking water.
SYSTEM CONTENT & SPECIFICATIONS
Housing sumps and filter heads: FH20Bx_L
Pressure gauge and brass extension: KCGA-1 and KCGA-1-E2
Centralizing and o-rings: NI-412-CENT-GR-AB and OR-N-1524X57
Feed water connectors: FXCG1-B
Wrench for filter: FXWR1BB-BL
Installation instructions (English language)
System dimensions (Height x Width x Length): 720 x 380 x 220 mm
Cartridge dimensions (Height x Outer Diameter): 20 x 4 1/2 inches
Operating temperature range (water): 2 - 45 °C (35 – 113 °F)
Operating pressure: 6 bar (90 psi)
100% factory-assembled, leak tested and ready for installation
NA
NA
NA
NA
-
-
-
-
- UAE (About 2 Working Days)
- Within GCC (About 3 Working Days)
- Africa (About 14 Working Days)
To be informed.
Overview:Aquafilter offers HHBB20A 2-Stage Whole House Big Blue® filtration System suitable for POE (Point of use) installations. HHBB20A housings are compatible with a broad range of cartridge types available on the market. Additionally, pressure drop can be monitored through the two pressure gauges located in the inlet and outlet positions of the system besides the microbial protection conferred by blue colored-housings in sunny locations. Equipped with pressure relief valves and a rounded bottom which increases stress resistance, HHBB20A ensures a continuous supply of fresh and clean drinking water.
SYSTEM CONTENT & SPECIFICATIONS
Housing sumps and filter heads: FH20Bx_L
Pressure gauge and brass extension: KCGA-1 and KCGA-1-E2
Centralizing and o-rings: NI-412-CENT-GR-AB and OR-N-1524X57
Feed water connectors: FXCG1-B
Wrench for filter: FXWR1BB-BL
Installation instructions (English language)
System dimensions (Height x Width x Length): 720 x 380 x 220 mm
Cartridge dimensions (Height x Outer Diameter): 20 x 4 1/2 inches
Operating temperature range (water): 2 - 45 °C (35 – 113 °F)
Operating pressure: 6 bar (90 psi)
100% factory-assembled, leak tested and ready for installation
